Narrow or circumferential UV DTF artwork can look completely correct on a flat canvas and still create new problems once the design wraps around a physical surface. Which direction should the text read? Will the logo stay on the front, or rotate toward the side? Where should the artwork begin and end? Could a seam or meeting area interrupt an important word or key visual element?
Preparing a narrow wrap is not only about making the artwork fit inside the canvas. You also need to think about how someone will see the finished object and how the design will move around the surface. Orientation, seam placement, and readability should therefore be resolved before the final export is prepared.
If you are still learning the broader process, start with this overview of the UV DTF transfer process. For a narrow wrap file, the more specific question is how the flat artwork should be oriented so it remains readable and visually intentional on the finished surface.
Decide How the Design Should Be Viewed First
Start the orientation decision with the person looking at the finished item, not with the software canvas. If the object has a natural front, the main logo, name, or important text will usually need a clear relationship with that viewing area. If the surface does not have an obvious front, think about how the object is normally held and which angle is most likely to be seen first.
This matters even more when the artwork continues around the object. One part of the design may face forward while another moves toward the side or back. Two elements that sit next to each other in the flat file may not be visible at the same time on the finished item.
Instead of treating the artwork as one long rectangle, evaluate how a viewer's eye will move across the physical surface.

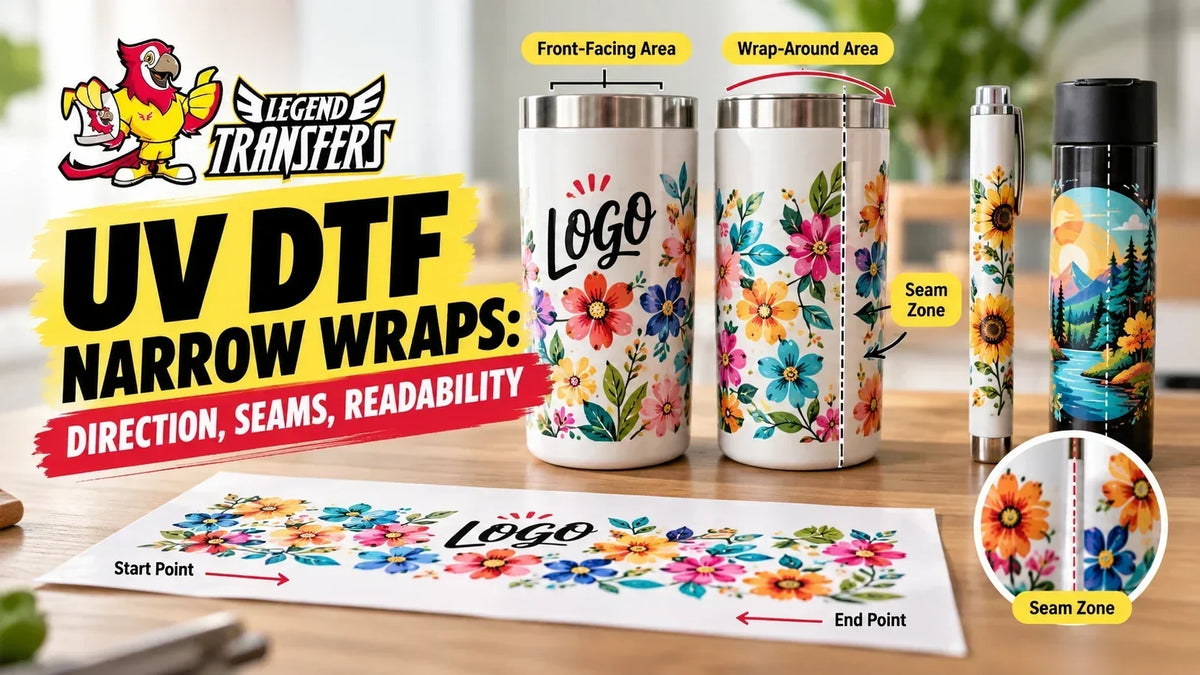

Separate the Front-Facing Area From the Wrap-Around Area
Every part of a narrow wrap does not need to carry the same visual importance. One section can act as the main viewing area while other sections continue the design around the surface.
If you have a primary logo, short name, or another element that should be recognized immediately, keeping it within the front-facing area can create a more controlled composition. Decorative patterns, secondary graphics, or repeating elements can continue toward the sides.
This distinction also prevents you from treating every inch of the narrow canvas as equally important. The main message and the surrounding continuation do not have to perform the same job. Decide first what needs to be understood at a glance, then decide which elements can move into the wrap-around areas.
Choose Horizontal or Vertical Reading Direction Deliberately
If the artwork includes text or a logo with a strong directional structure, do not judge it only by how balanced it looks on the canvas. Consider how the finished object will normally be held and viewed.
A horizontal reading direction can work when the user can read the message naturally from left to right while the object is in its normal position. A vertical orientation may fit some narrow areas better, but it should be reconsidered if the viewer has to mentally or physically rotate the object just to understand the text.
There is no single correct direction for every narrow wrap. The useful direction is the one that keeps the design's message consistent with the finished object's natural position.
Apply the same check to logos or illustrations with an obvious top and bottom. An element that looks upright in the file is not automatically upright when the finished item is being used or displayed.
Treat Artwork Start and End Points as Real Design Decisions
The beginning and end of wrap artwork can look like simple left and right canvas edges in a flat file. On the physical object, those two areas may come close together and become parts of the same seam or meeting zone.
Review what is happening at both ends of the composition. If half of an important word sits on one edge and the rest depends on the opposite edge, the finished reading experience may not work the way you expect. Likewise, if the main logo sits too close to an edge, the seam area can take on more visual importance than you intended.
Defining the start and end points does not mean the composition always needs to change. It means reviewing the design with the understanding that those two edges may interact on the finished surface.
Do Not Force Critical Information Into the Seam Zone
The seam or meeting area is one of the most sensitive parts of a narrow wrap composition. When a primary logo, phone number, name, short slogan, or other essential text sits close to this area, the appearance of that information becomes more dependent on how the start and end of the wrap meet.
A more controlled approach is to treat the seam area as the transition between the beginning and end of the composition. Critical information can remain in a stronger viewing area, while the seam can contain backgrounds, patterns, or visual elements that are less affected by a visible break.
This is not a universal rule about seam width or required empty space. Different objects and artwork layouts may behave differently. The important point is to account for the seam while preparing the file instead of discovering its effect after the final export.
Do Not Judge Readability by Text Size Alone
Text can look clear and large enough in the digital file and still become difficult to read if it sits at the wrong angle on the finished object. In a narrow wrap, readability is not only about font size or how fine the graphic details are.
If a word begins on the front and turns toward the side, the viewer may not be able to see the full phrase at once. If part of the text sits in the front-facing area while the rest approaches the seam, the message can feel visually fragmented.
Use these questions when reviewing readability:
- Can the main text be read while the object is in its natural position?
- Do the most important words remain within the front-facing area?
- Does a phrase become unnecessarily divided by the seam or start and end points?
- Does the text orientation match the natural top and bottom of the object?
- Does the viewer need to rotate the object unnecessarily to understand the message?
Even text that is technically large and clear can become harder to read when it is oriented incorrectly or positioned too close to the seam.
Check the Rhythm of Repeated Elements Across the Seam
Narrow wraps may include small icons, motifs, words, or other repeating elements. Repeated artwork deserves extra attention around the seam because the beginning and end of the pattern may approach one another on the physical surface.
A partially cropped motif is not automatically a problem. Some compositions intentionally use cropped elements. The issue is whether the pattern changes unexpectedly near the meeting area. Uneven spacing or two similar elements appearing too close together may create a visual imbalance that was not obvious in the flat file.
During the final review, look at both ends of the canvas together. Treat them as parts of the same physical surface and check whether the visual rhythm still feels deliberate where the composition begins and ends.
You Do Not Need to Fill Every Part of a Narrow Canvas
A narrow artwork area does not mean every available space needs to contain graphics or text. An overly dense composition can make it harder to distinguish the primary element from the seam or side-view areas.
Controlled negative space can help establish visual hierarchy around a logo, short text, or another directional graphic. Giving the front-facing message some breathing room can make the relationship between the primary information and the wrap-around decoration easier to understand.
When evaluating open space, do not focus only on making the flat file look symmetrical. Consider how the object will look from different angles once the artwork follows the surface.
Do Not Treat the Flat File and Curved Surface as the Same View
On a flat screen, you see the entire artwork at once. On a circumferential surface, the viewer usually sees only part of the design from a single angle. One section comes forward while another turns toward the side or back.
This difference becomes especially important with long lines of text, wide logos, and compositions that place several important elements next to one another horizontally. A message that is immediately understandable in the file can become divided across multiple viewing areas on the finished surface.
Do not rely only on zoom level or the overall appearance of the canvas when reviewing the artwork. Read the design in the order its different sections are likely to appear around the finished object.
Review How the Design Moves Around the Surface
Before the final export, inspect the artwork as a composition that will move around a physical surface. Start with the front-facing area. Then consider how the design continues toward one side, which elements move out of view, and which elements become visible as the object turns.
Check whether the main logo or text drifts too close to the seam, whether the horizontal or vertical orientation still makes sense, and whether the relationship between the beginning and end of repeated elements remains controlled.
If the physical artwork size has already been finalized, do not use this stage to restart the sizing process. The goal here is to confirm that the existing dimensions still support the intended orientation and visual flow on the finished object.
Do Not Hide an Orientation Problem With a Last-Minute Rotation
If the final preview reveals that the artwork is facing the wrong direction, simply rotating the exported file may not solve the entire problem. Changing the rotation can also change the front-facing area, the relationship between the start and end points, and the direction of the text.
Make the correction in the working file and review the full composition again. Check the logo direction, text orientation, seam zone, and repeated elements together. Then export the updated file and inspect the final preview again.
This approach helps prevent a quick orientation correction from creating a different visual problem elsewhere in the wrap.
Move to Upload After Direction and Seam Decisions Are Complete
Once you have confirmed how the artwork should be read, identified the primary front-facing area, reviewed the wrap start and end points, and checked the critical elements around the seam, the orientation plan is complete.
Reopen the final export and review it one last time in the context of the finished object rather than only as a flat canvas. If the design still follows the intended direction and important text or logos have not shifted into an unwanted seam position, you can move the file into the UV DTF upload process.
At submission, use the final file that preserves the surface orientation decisions already established in the working artwork instead of introducing a new directional change.
Frequently Asked Questions
Is horizontal or vertical orientation better for a narrow wrap?
There is no universal answer. The natural reading direction of the design, the way the object is held, and the primary viewing area should be considered together. If someone has to rotate the object unnecessarily to understand the text or logo, the orientation is worth reviewing.
Is it always wrong to place text near the seam?
No. However, when the primary message or other critical text depends heavily on the seam area, the finished appearance becomes more sensitive to where the wrap begins and ends. Keeping important information in a stronger viewing area and treating the seam as a deliberate transition can provide more control.
Why should I check orientation if the artwork looks correct in the flat preview?
A flat canvas shows the entire design at once. A circumferential surface shows only certain sections from the same viewing angle. Text, logos, or patterns that look balanced in the file can therefore create a different visual relationship once they continue around the finished object.
Can large text still be difficult to read on a narrow wrap?
Yes. Even when the text size is sufficient, incorrect orientation, placement too close to the seam, or movement into a side-view area can make the message harder to read at a glance.
Direction, Seams, and Visual Flow Should Work Together
Preparing a narrow UV DTF wrap requires more than matching the artwork to a long, narrow canvas. Because the design continues around a physical surface, the front-facing area, wrap-around sections, start and end points, and seam all affect one another.
Decide which angle should carry the primary message, build the reading direction around that view, and manage critical information near the seam deliberately. If the composition includes repeated elements or a wider continuous design, review both ends of the canvas as parts of the same finished surface.
When those decisions are resolved in the working file, the final export becomes more than a technically prepared file. It becomes artwork that has already been considered in the context of how the finished object will actually be seen and read.
